Frameless cabinet builder

Design frameless 32 mm cabinets and get an exact cut list and drilling layout

Open the tool Download zip

Frameless cabinet builder with its default settings

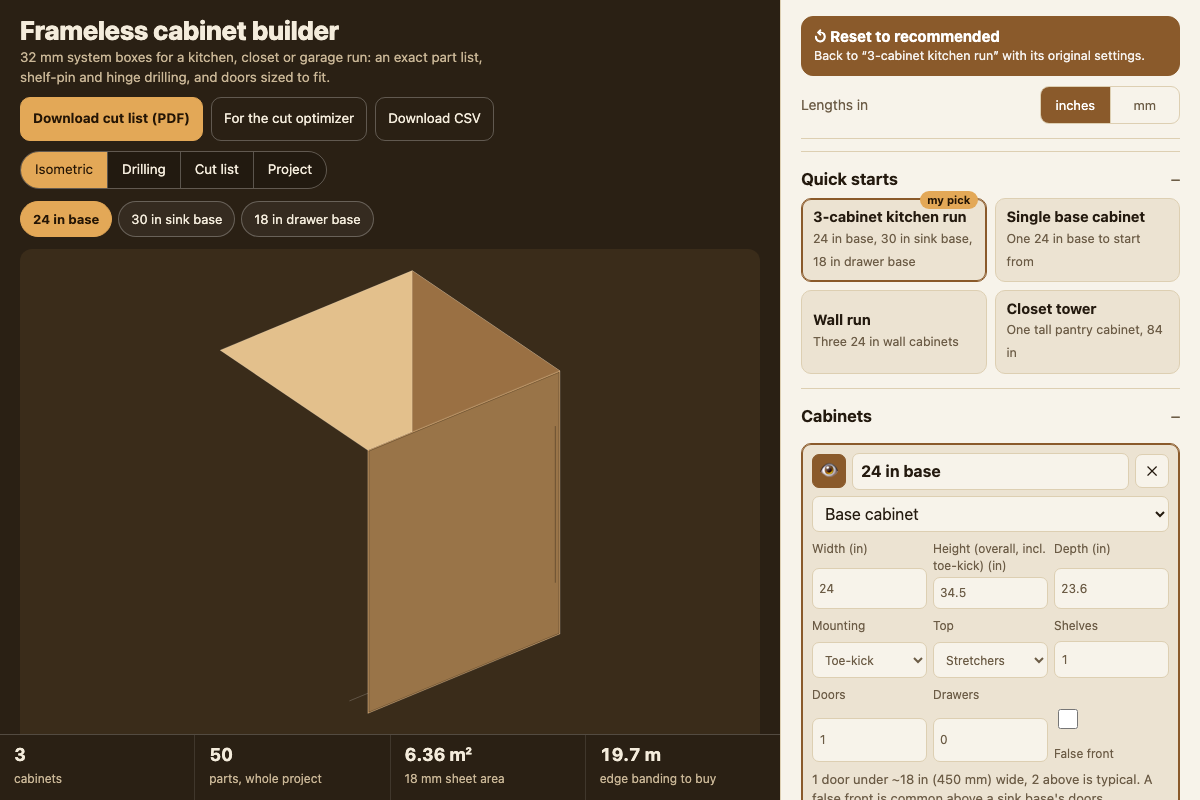

Screenshot of the tool as it opens; it is a real capture, not a mockup.

Thanks, your report was sent.

Report a problem or a newer version
What is it?

No name or address needed, and please leave personal details out of the note. Only I read reports, and each is deleted after 90 days; the privacy page has the details.

What it makes

A part-by-part cut list for one or more frameless cabinet boxes: sides, bottom, top or stretchers, back, shelves, toe-kick or leg parts, doors, drawer fronts and drawer boxes, each with its finished cut size, grain direction and which edges are edge-banded. Also a shelf-pin and hinge-plate drilling diagram per cabinet (37 mm setback, 32 mm pitch, on the 32 mm system), door and drawer-front sizes, and an isometric preview of every cabinet in the project.

How to use it

  1. Start from the 3-cabinet kitchen run or another quick start, or add base, wall, tall/pantry, drawer-base and sink-base cabinets one at a time.
  2. Set each cabinet's width, height and depth, its mounting (toe-kick or legs), and its shelf, door and drawer counts.
  3. Set the project's material thickness, back style (inset dado, rabbet or applied), edge-banding thickness, door gap and drawer-slide type once — they apply to every cabinet.
  4. Tap a cabinet name above the preview to switch the Isometric and Drilling views between cabinets.
  5. Download the PDF for the full cut list and a shop copy with a drilling diagram, the 1:1 SVG drilling template for the cabinet on screen, the JSON file for a cut-list optimizer, or the CSV.

Build notes

  • Height is the overall cabinet height, floor to the top of the box; on a toe-kick or leg cabinet the carcass itself is shorter by that riser's height, shown separately in the preview. Formulas are standard 32 mm system shop practice (bottom and top/stretchers captured between the sides at full depth, back set in a dado/rabbet cut short to clear them or applied to the rear face; 37 mm/32 mm shelf-pin line; 35 mm cup at 22.5 mm from the door edge, the Blum standard) rather than any one manufacturer's exact numbers — confirm hinge and drawer-slide clearances against your hardware's own instructions before cutting.
  • The PDF's drilling diagrams are scaled reference drawings with dimensions; the downloadable SVG per cabinet is the true 1:1 template.
  • Works fully offline once opened; nothing is fetched.

Versions

The site runs the newest. Every earlier version stays downloadable, unchanged, for builds already under way.

  1. 1.0.1current

    Height is now the overall height, so a base no longer comes out about 100 mm too tall; the grooved back clears the bottom and top; drawer boxes follow each slide's rule (Blum TANDEM inside width opening minus 42, box slide minus 10); banding follows rotated parts; 1-decimal PDF with a banding column; shelf pins clear hinge plates; cut list fits phones; check square on the drilling sheet; older saves keep their carcass height.

    Download 1.0.1 of Frameless cabinet builder

  2. 1.0.0

    First published.

    Download 1.0.0 of Frameless cabinet builder
